Glass Door and Glass Showcase Hardware

The latest glass showcase hardware: GS-G series and the adaptable bracket for the HES3D series!

Glass Door & Glass Showcase Hardware

Adaptable Brackets for the HES3D and GS-G Series Hinges for Glass Doors

Finding aesthetically pleasing glass door and glass showcase hardware can be difficult.
We present to you glass adaptable brackets that are to be paired with our famous HES3D concealed hinges and the GS-G series hinges and locks to achieve a coordinated finish for glass showcases.

#WhenDetailsMatter  #Sugatsune  #glassdoorhardware #glassshowcase




HES3D-G90BKT

Combined with the 3-way adjustable concealed hinges of the HES3D-90 series, the HES3D-G90BKT is ideal for glass doors that require a small hinge footprint. Available in 3 finishes: Chrome, Gold and Black, these glass brackets are the perfect finishing touch for any room.
To be paired with the HES3D-90 series concealed hinges for smaller cabinetry
Hinge is completely hidden when looking through the glass
Screw covers to match the bracket with the same hinge finish
  • Glass thickness: 1/4″ or 5-6 mm
  • Max. door width: 23-5/8″ or 600mm
  • Max. door height*: 39-3/8″ or 1,000 mm
  • Max. door weight*: 26 lbs or 12kg
*With an additional hinge, the HES3D-G90BKT may be used for doors which are up to 59-1/16″ high with can weigh up to 35 lbs (16kg).

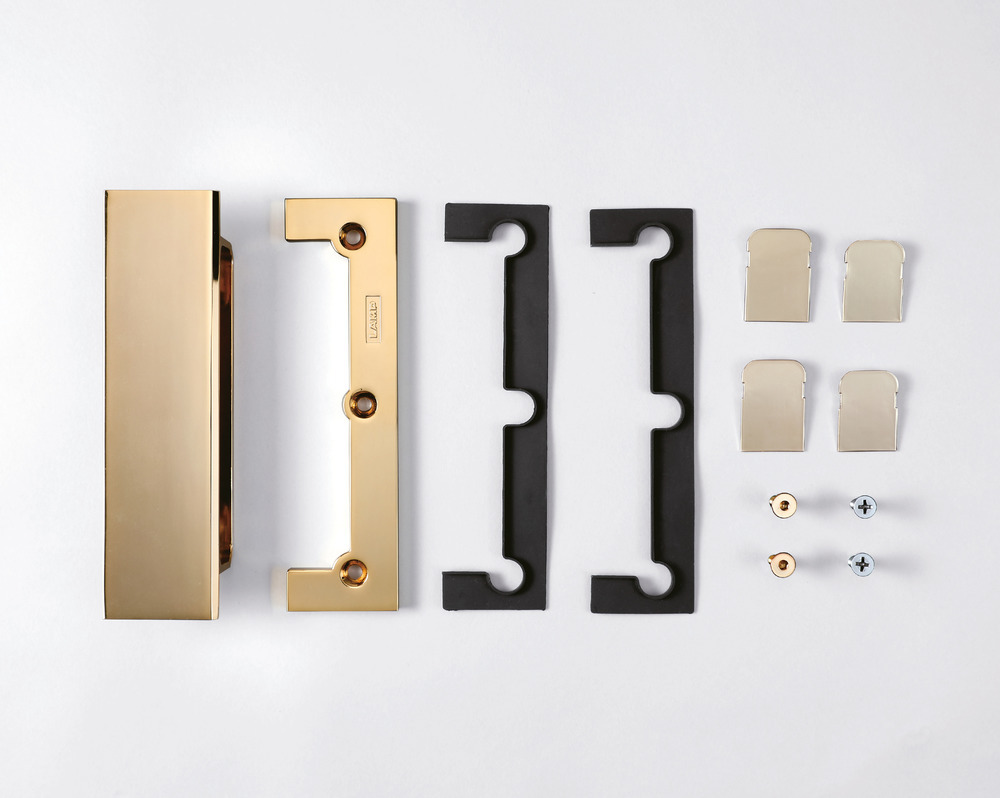

HES3D-G120BKT

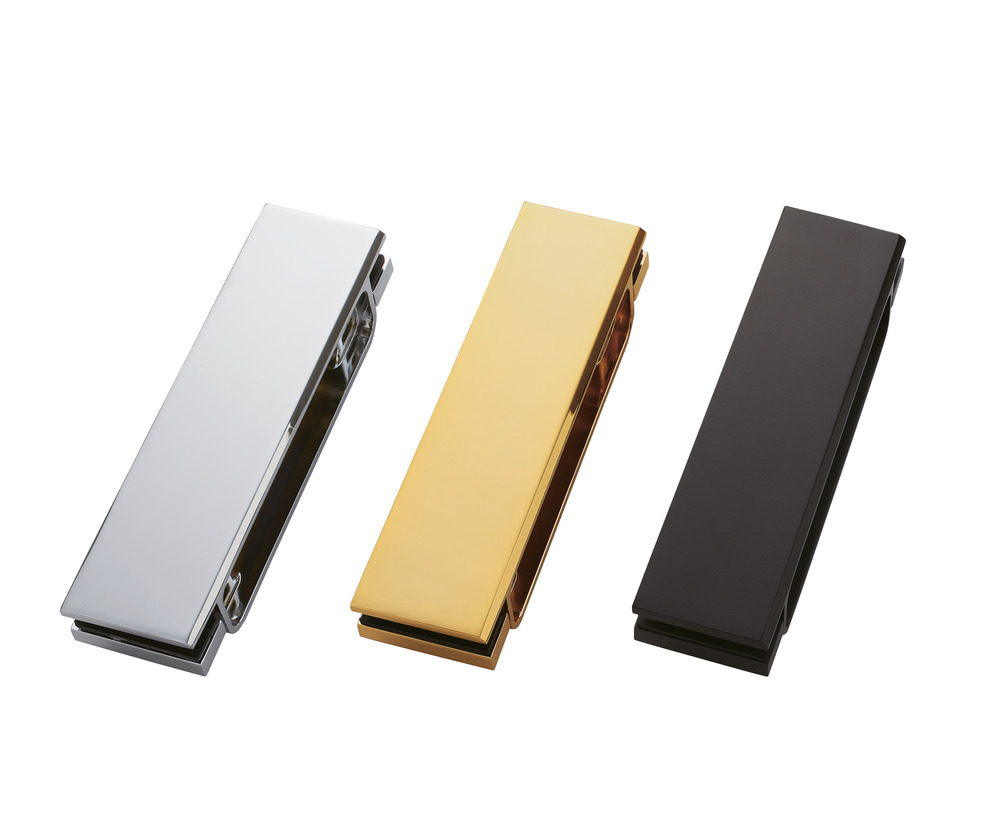

Combined with the 3-way adjustable concealed hinges of the HES3D-120 series, the HES3D-G120BKT is ideal for glass doors in medium sized cabinetry. Available in 3 finishes: Chrome, Gold and Black, these glass brackets elevate your glass showcases.

To be paired with the HES3D-120 series of concealed hinge for medium sized cabinetry
Hinge is completely hidden when looking through the glass
Screw covers to match the bracket with the same hinge finish
  • Glass thickness: 1/4″ – 5/16″ or 6 – 8mm
  • Max. door width*: 25-9/16″ or 650mm
  • Max. door height*: 70-7/8″ or 1,800mm
  • Max. door weight*: 66 lbs or 30kg
*With an additional hinge, the HES3D-G120BKT may be used for doors which are up to 29-1/2″ wide and 78-3/4″ high and can weigh up to 88lbs (40kg).

GS-G Series

Featuring a glass door lock, hinges, and bracket for total coordination, the GS-G series allows for a flat and seamless design that compliments the items within the showcase. There are 3 sets available in 3 finishes each for different sizes of glass doors. This glass showcase hardware can support glass door weight of 11 lbs up to 110 lbs depending on model.

There is an easy installation feature where the hinges and brackets may be held temporarily in place, which makes it possible for one person to install. Simply clip the hinges in place and install the covers for a seamless design. The pivot hinges are meant for inset doors. The brackets may be used for glass to glass or glass to wood configurations.

Using Million lock technology, the GS-G series is ideal for displays that require multiple locks. This locking technology uses dimple keys, which are hard to replicate. A master key may be used for multiple locks. Turn the key at 90 degrees to lock and unlock. The key can only be removed when locked.

For added facility of use, optional glass display door stop and surface mounting brackets are also available.


Available in 3 finishes: Black, Gold plated and Chrome.

A horizontal adjustment of ±2.5mm is available when accessing the adjustment screw on the side of the hinge.
